About this item

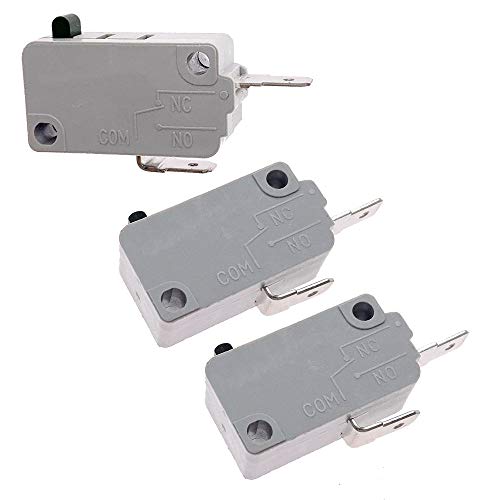

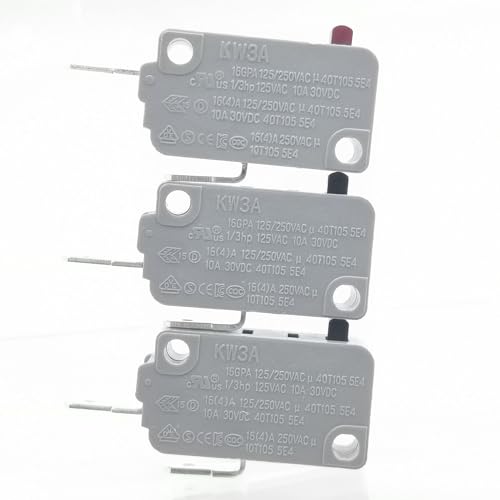

• KW3A Microwave Oven Door Interloc Switch
• Current:16A;Voltage:125V/250AVC.

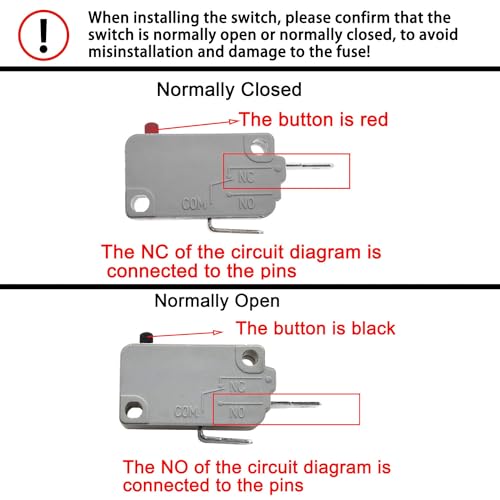

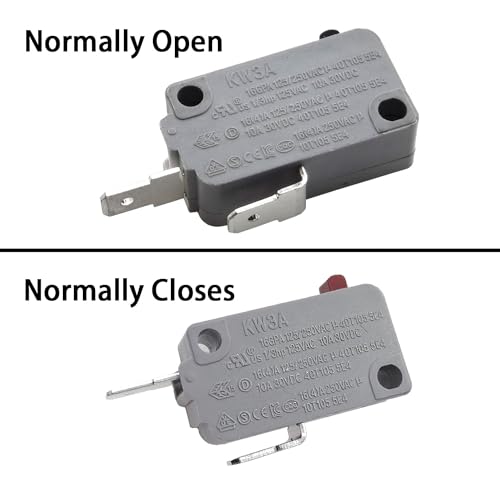

• Normally Open：After pressing the switch button, the internal contact is closed and the switch is in on state.
• Normally Closed：After pressing the switch button, the internal contacts are separated and the switch is disconnected.

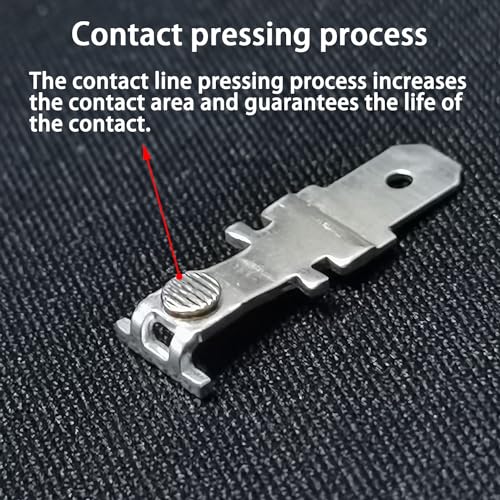

• Material: Engineering plastics;Color: Grey；Contact:Silver contact

Universal Microwave Door Switch

✅Normally Open Switch:
Model Number: KW3A-16.
Material: High temperature resistant engineering plastics.
Temperature Resistance: 105℃.
Color: Grey.
Current: 16A.
Voltage: 125V / 250V.
Mechanical Life: 5E4 (50000 times).
Job characteristics:After pressing the switch button, the internal contact is closed and the switch is in on state.

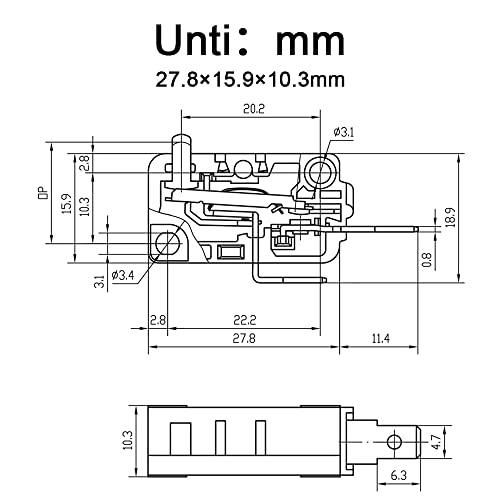

Shell Dimensions: 1.09" x 0.63"x 0.41"(27.8 x 15.9 x 10.3 mm).
Shape features:The switch button is black.


✅Normally Closed Switch:
Model Number: KW3A-16.
Material: High temperature resistant engineering plastics.
Temperature Resistance: 105℃.
Color: Grey.
Current: 16A.
Voltage: 125V / 250V.
Mechanical Life: 5E4 (50000 times).
Job characteristics:After pressing the switch button, the internal contacts are separated and the switch is disconnected.
Shell Dimensions: 1.09" x 0.63"x 0.41"(27.8 x 15.9 x 10.3 mm).
Shape features:The switch button is red.


Package Includes: 2x Normally Open Switch 1x Normally Closed Switch
