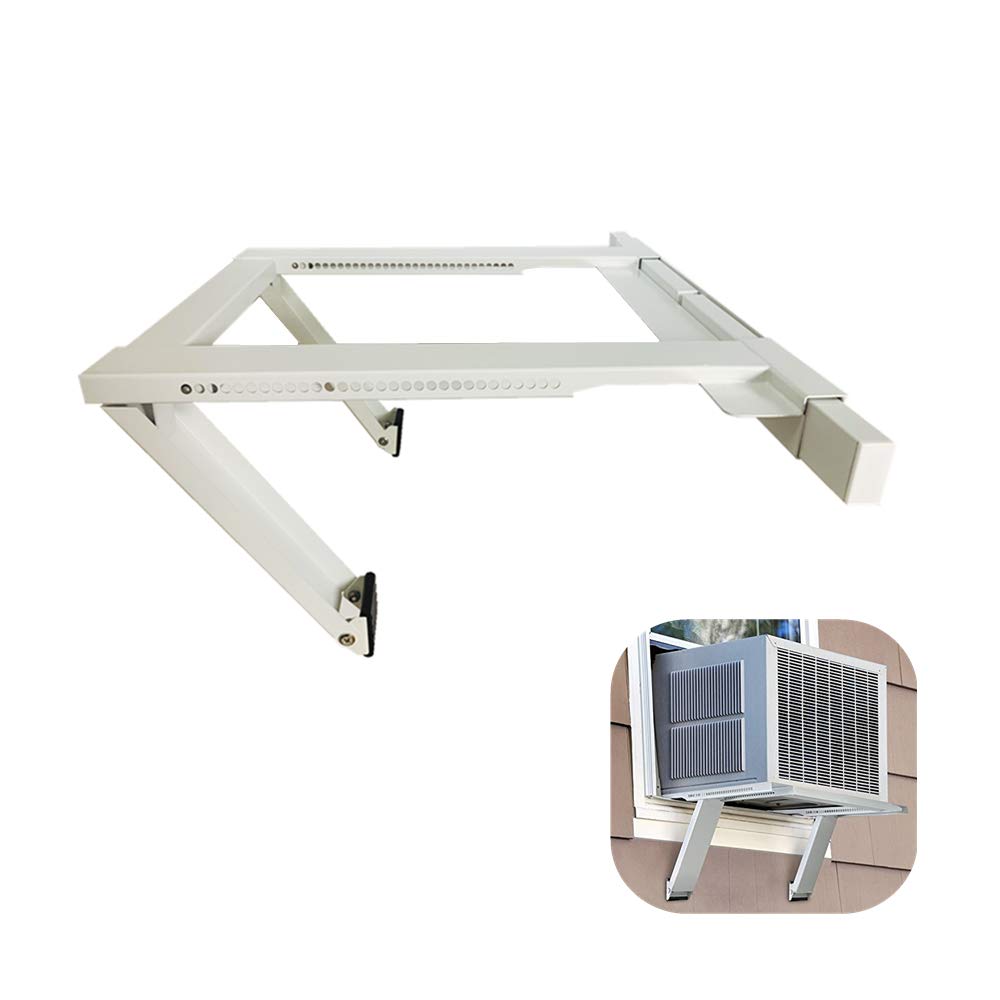

Air Conditioner Bracket,Air Conditioner Support Bracket,No Drilling and No Tools Required, Heavy Duty Steel Construction Holds Up to 200 lbs, with Installation Instruction Manual

Brand: Superunner

Color: Air Conditioner Bracket

Features:

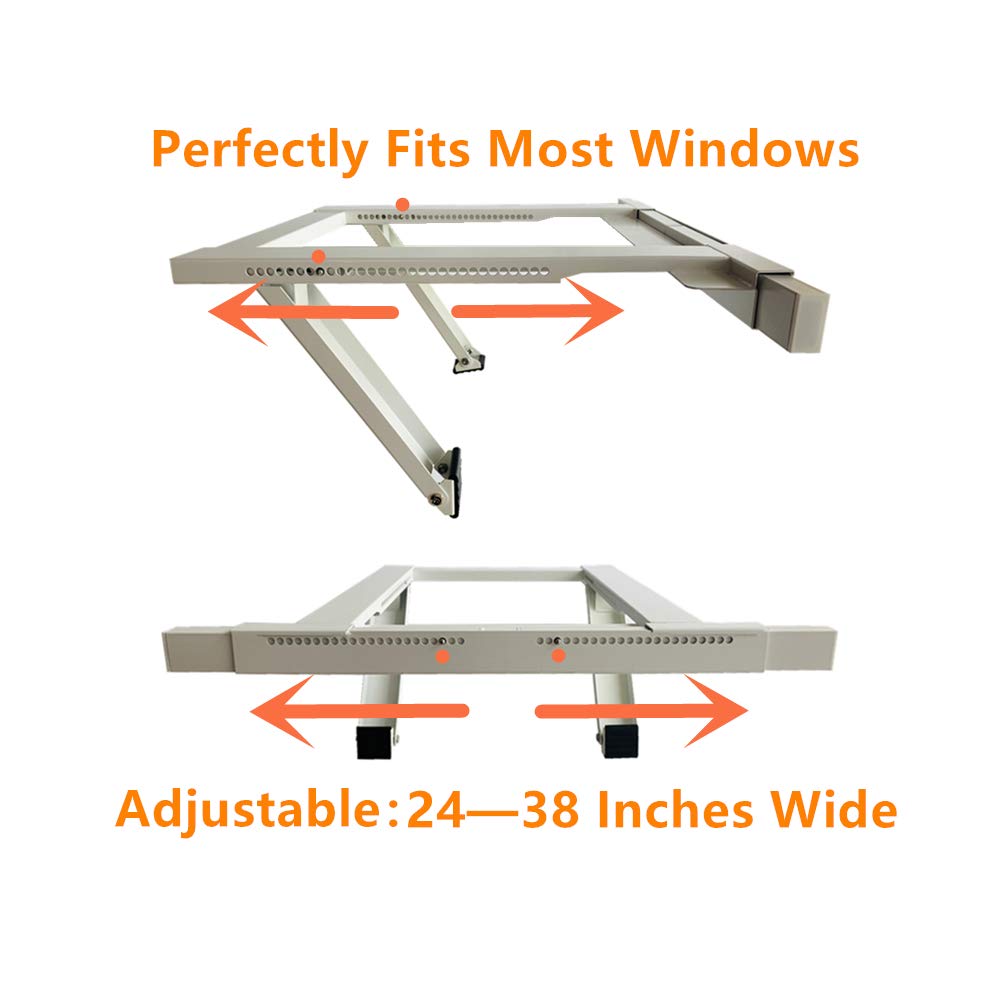

• New type Universal Adjustable Bracket：Adapts to single or double hung windows from 22-38 inches wide, not fit large window ledge. Fits wall thickness from 4" to 11", Support up to 200 lbs.
• Heavy Duty and High Quality: Window unit brackets have solid epoxy-coated thick steel plate, that prevent rust and rot, matte surface prevent the AC to drop out of the window.

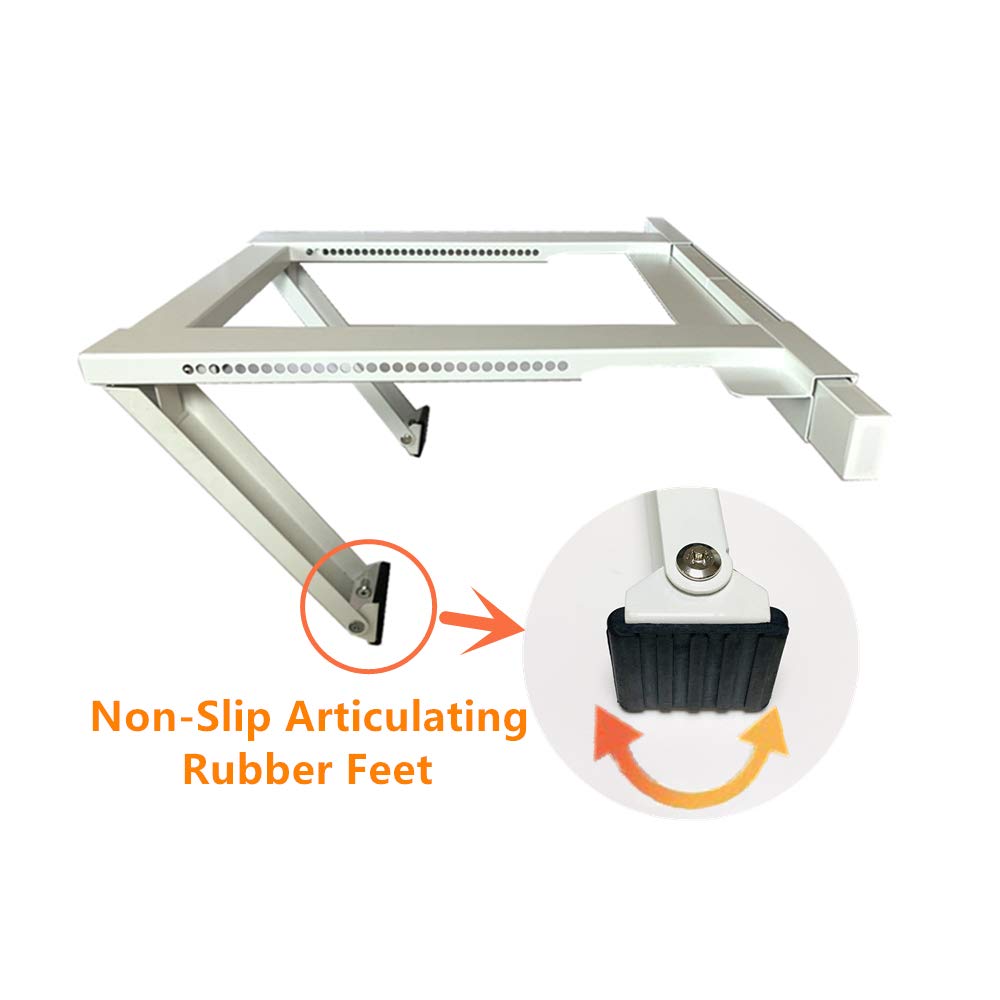

• Enhanced Safety And No Tools or Drilling required: Air conditioner bracket for windows no drilling,no tools needs, you can install it in minutes from inside home, no damage to outside wall or window sill.Support Legs & extension beams provide extra support inside & outside, integrated rubberized feet add stability.
• Relieve Stress on the Window: Transfers the stress and weight from the window sill and sash to the ac window support and window frame for safety.
• Note: Please measure your window' size to check the fitness, comes with the installation manaul, read it carefully before setup.

model number: Bracket0068

Part Number: Air Conditioner Support Bracket

Details: Features:

Fits wall thickness from 3"" to 15.2""

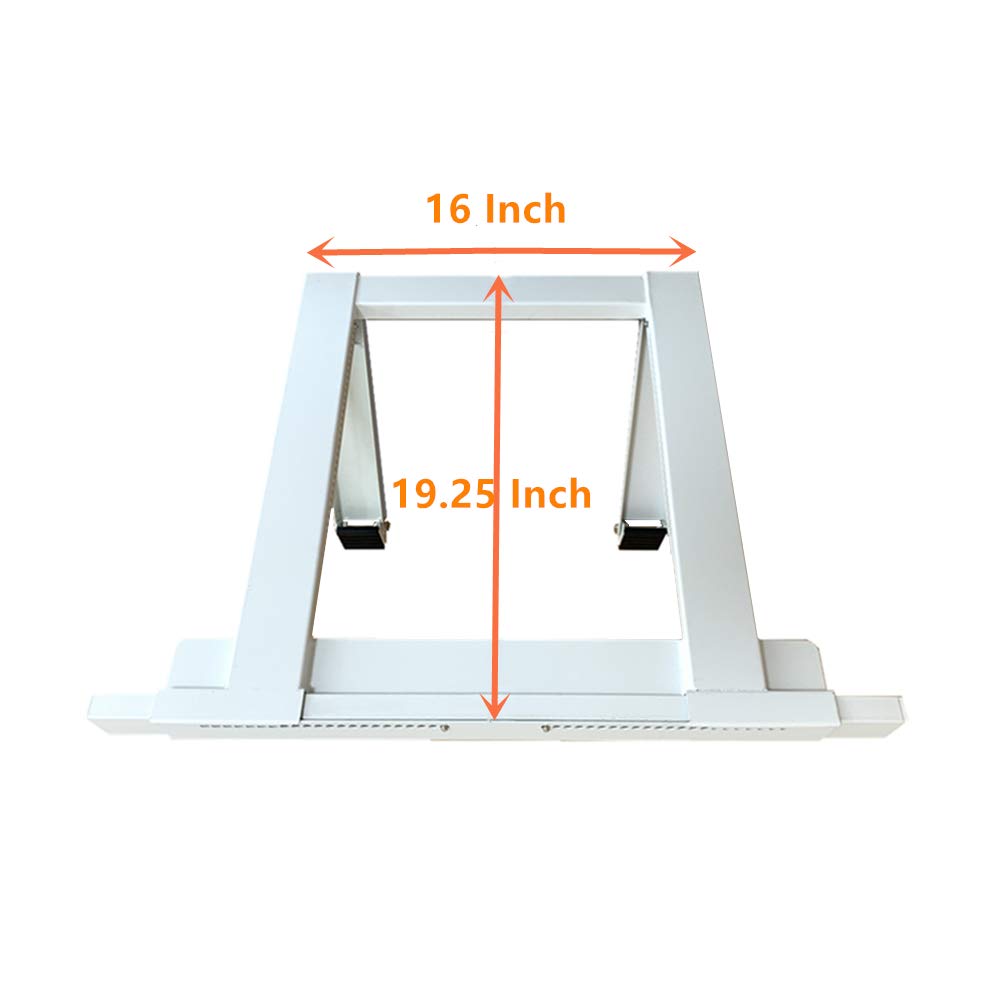

17"" long A/C resting surface
The support holds up to 180 pounds
Support A/C BTU ratings of:
12,000 BTU-24,000 BTU

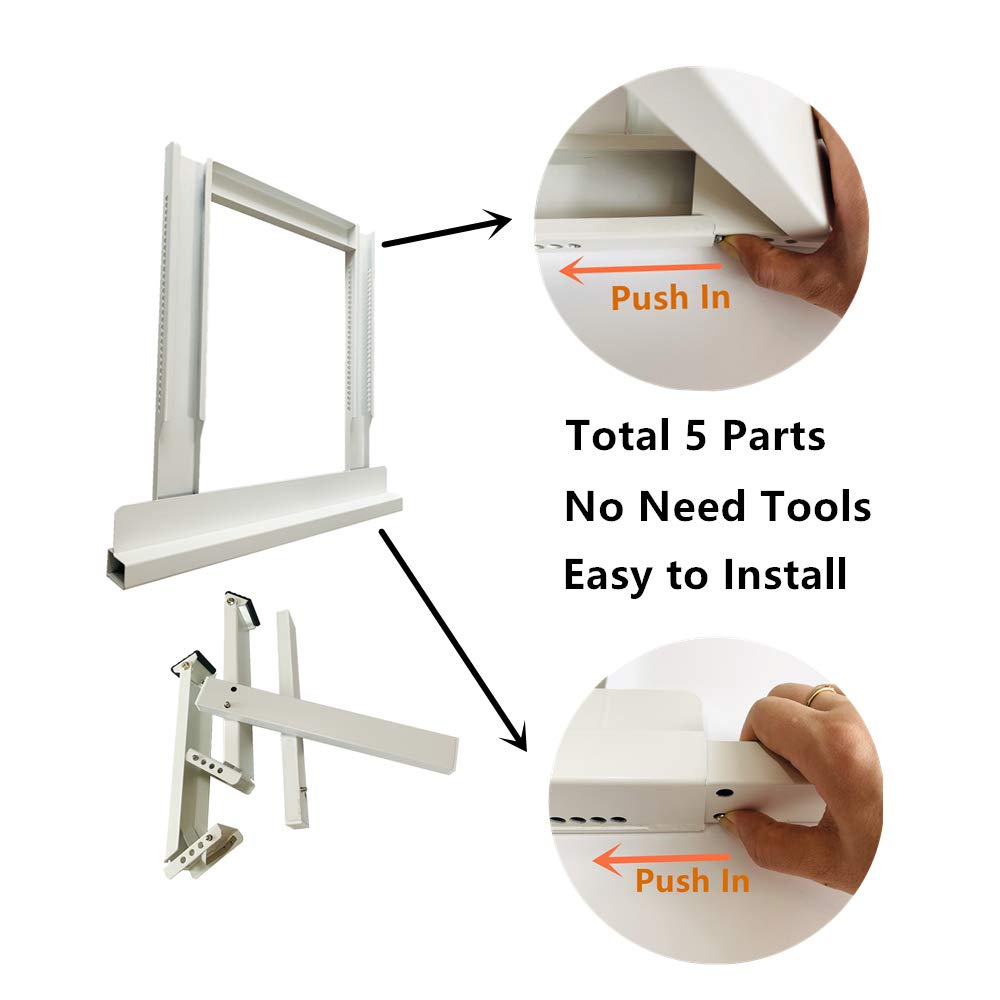

Install Tips:

a: Slide support leg into support rail and lock the support legs in desired position.
b: Insert the included Square Tube into each side of the Tube Rail while pressing both spring bottons. Release bottons at the desired length.
c: Place the bracket in window and adjust each sill Square Tube until it is positioned securely inside the window frame.
D:Adjust the legs until the H-frame is tilted very slightly downward. Be sure the support foot pads are resting on the exterior. Place air conditioner on the bracket

Window Requirements:

1.Window sill thickness cannot exceed 16 inches
2.Window sill must be a minimum of 2 inches deep
3.Window sill must be able to accept 2 1/2 inches long screws
4.Sliding window lip or window stool cannot exceed 1 7/8inches
5. Cannot be used with slide casement or casement windows

Since it is a window sill operation, please pay attention to safety. Safety is first.

Since it is a window sill operation, please pay attention to safety. Safety is first.

EAN: 6230043279598

Package Dimensions: 20.6 x 19.9 x 2.8 inches
